Part
|
Description
|
Quant
|
Draw
|
Pict
|

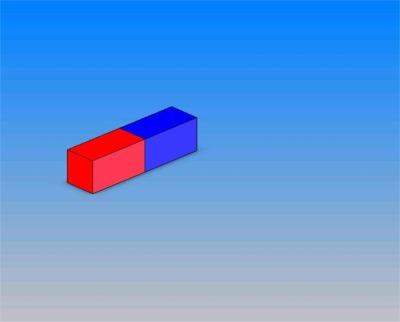

| 1 | M001 | Permanent magnet | 17 | Y |  |

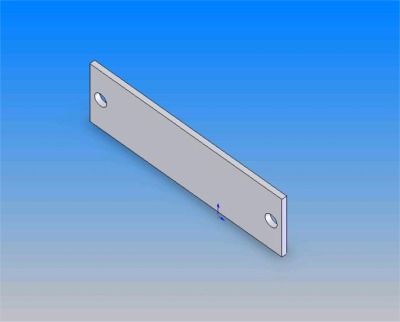

| 2 | E002 | Mild iron | 17 | Y |  |
| 3 | E003 | Mild iron | 17 | Y |  |
| 4 | E004 | Mild iron | 17 | Y |  |

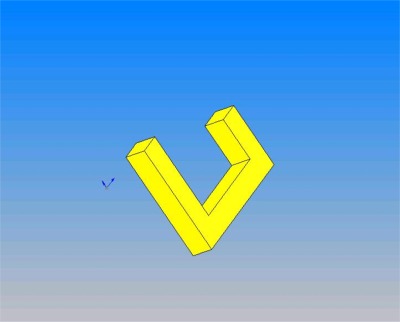

| 5 | CS005 | Coppar spacer | 34 | Y |  |
| 6 | E006 | Brass | 17 | Y |  |

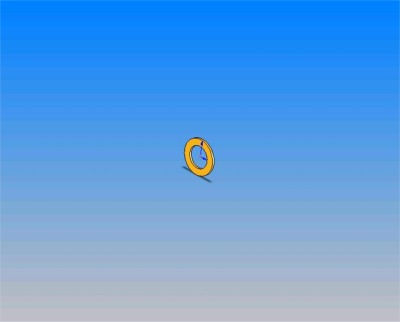

| 7 | W007 | Washer | 34 | Y |  |

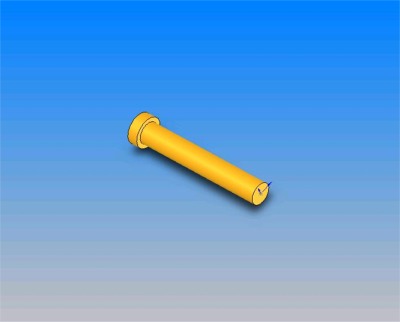

| 8 | S008 | Screw | 17 | Y |  |
| 9a | K009A | Mild iron | 11 | Y |  |

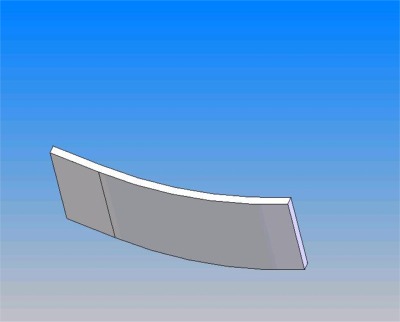

| 9b | K009B | Mild iron | 6 | Y |  |

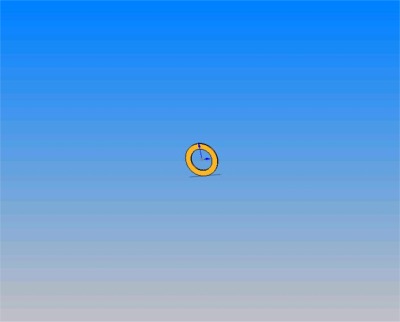

| 10 | W010 | Washer | 68 | Y |  |

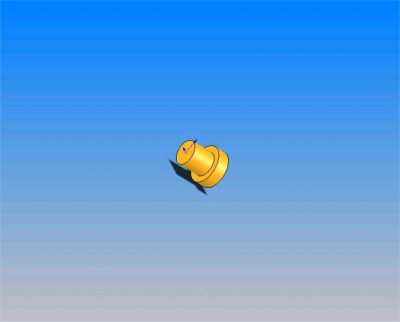

| 11 | S011 | Screw | 68 | Y |  |

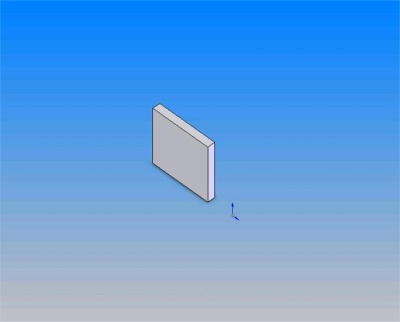

| 12 | E012 | Mild iron | 17 | Y |  |
| 13 | PW013 | Plywood | 1 | Y |  |

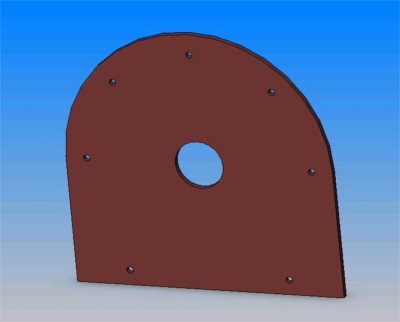

| 14 | PW014 | Plywood | 1 | Y |  |

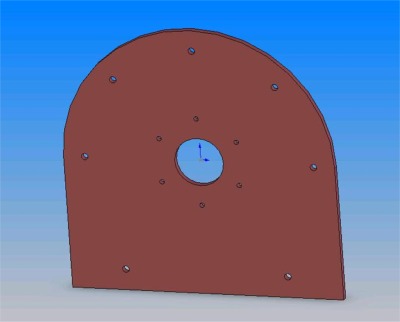

| 15 | PW015 | Plywood | 1 | Y |  |

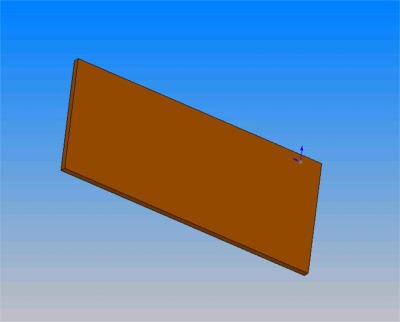

| 16 | PW016 | Plywood | 1 | Y |  |
| 17 | PW017 | Plywood | 1 | Y |  |

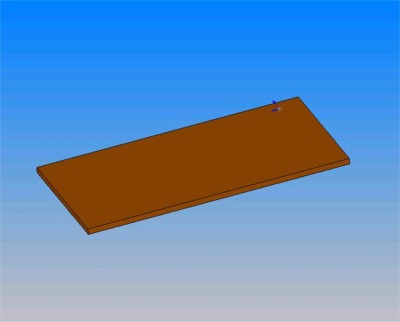

| 18 | PW018 | Plywood | 1 | Y |  |

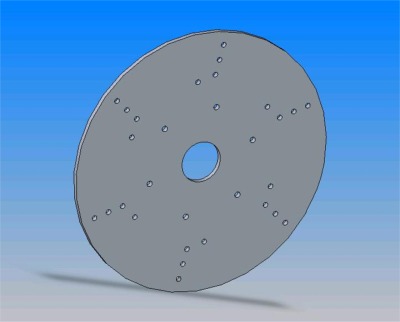

| 19 | SM019 | Stator mount | 1 | Y |  |

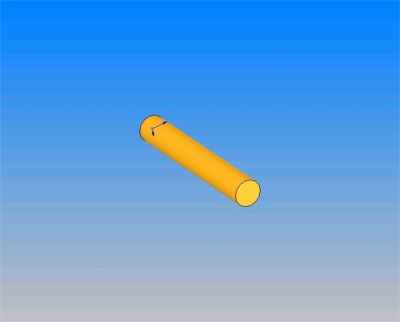

| 20 | B020 | Bolt | 6 | Y |  |
| 21 | W021 | Washer | 24 | Y |  |

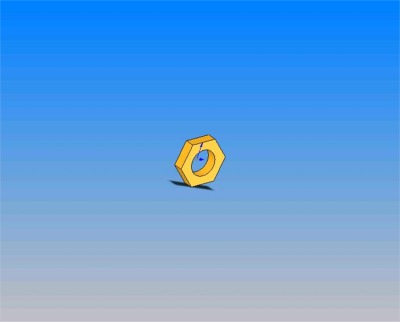

| 22 | N022 | Nut | 24 | Y |  |

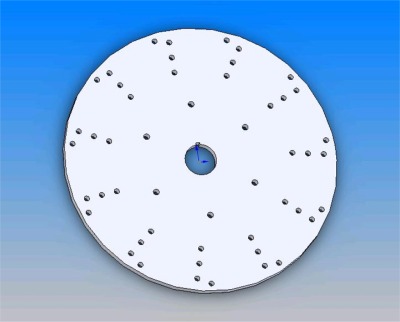

| 23 | R023 | Rotor (magnet mount) | 1 | Y |  |
| 24 | R024 | Rotor (lead filling) | 1 | Y |  |
| 25 | R025 | Rotor (alu. flange) | 1 | Y |  |

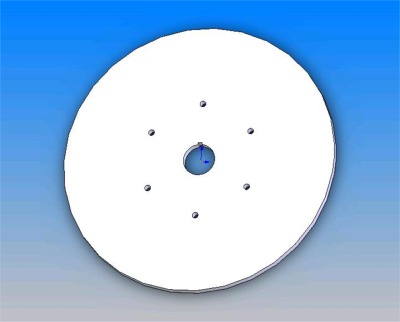

| 26 | R026 | Rotor | 1 | Y |  |

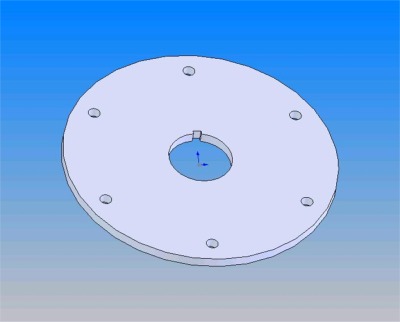

| 27 | RM027 | Rotor mount | 1 | Y |  |

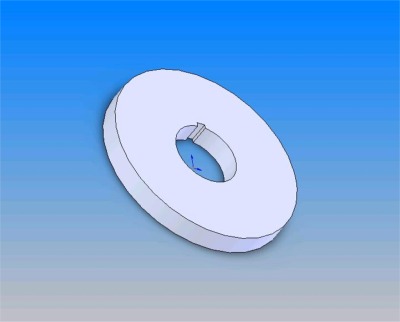

| 28 | RM028 | Rotor mount | 1 | Y |  |

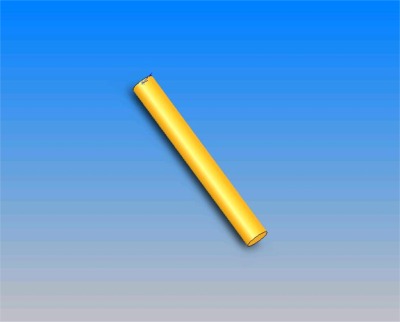

| 29 | B029 | Bolt | 6 | Y |  |

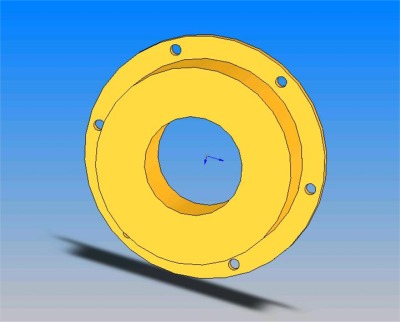

| 30 | FB030 | Flange bearing | [2] | N |  |
| 31 | SB031 | Surface bearing | 3 | N |  |
| 32 | C032 | Collar | 3 | Y |  |

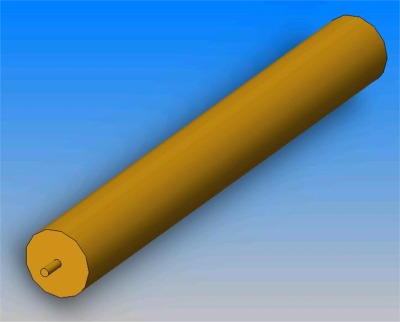

| 33 | S033 | Shaft | 1 | Y |  |

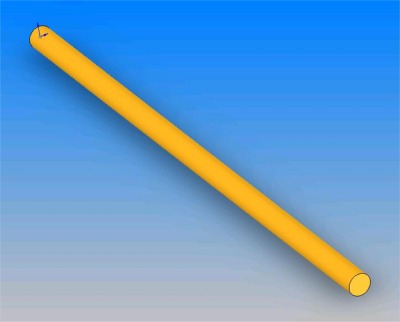

| 34 | B034 | Bold | 7 | Y |  |
| 35 | W035 | Washer | 14 | Y |  |

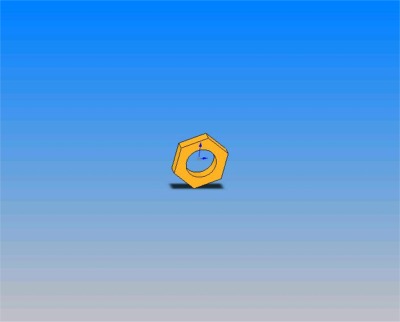

| 36 | N036 | Nut | 14 | Y |  |
|
|
|
